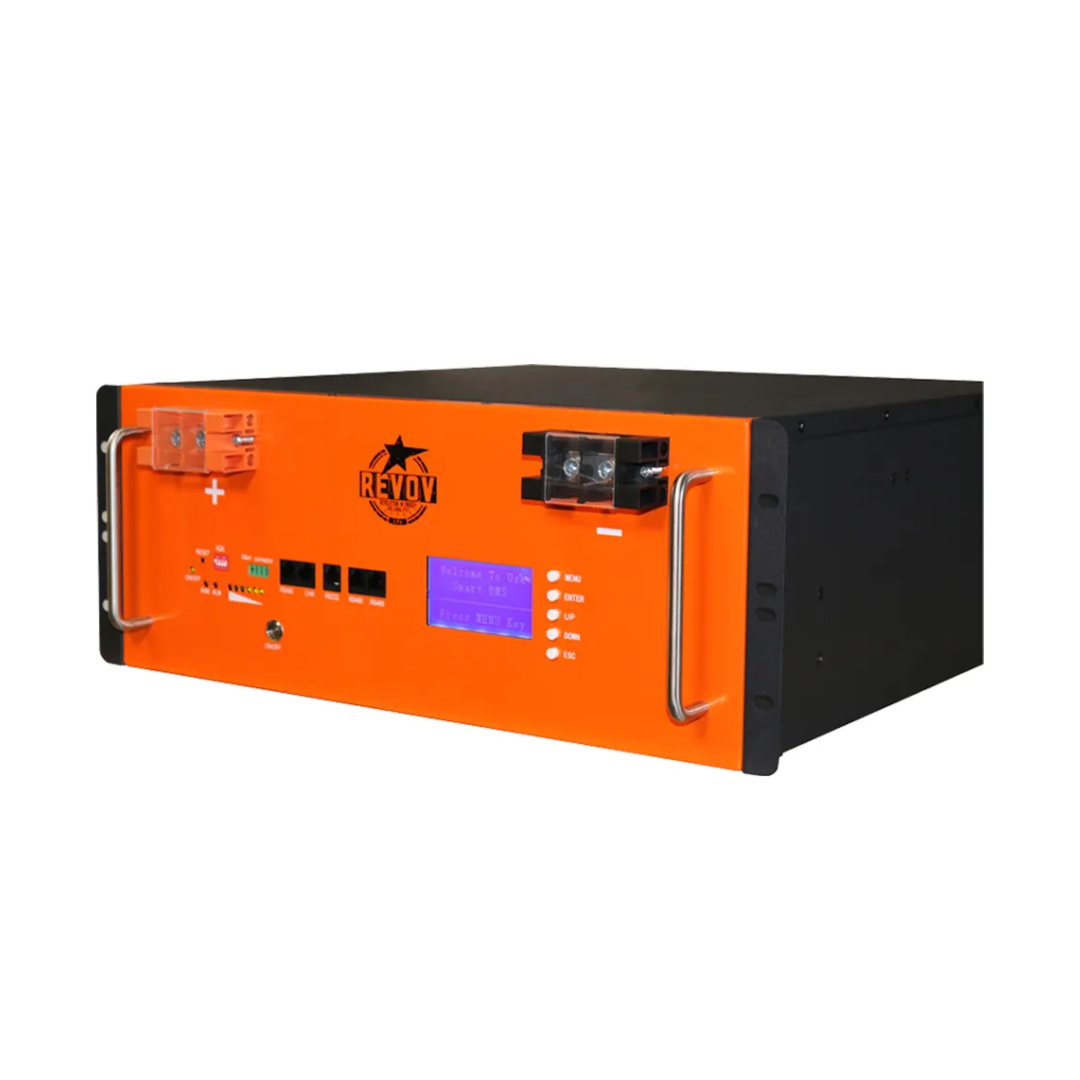

The Revov R100 is a robust and high-performance energy storage solution designed to meet the needs of various energy storage applications. It features a lithium iron phosphate (LiFePO4) battery with a 100Ah capacity, which translates to a power capacity of 5.1kWh. This capacity makes it suitable for both residential and commercial use, providing backup power and energy management.
The battery operates at a nominal voltage of 51.2V, with a float charge of 54.5V and an absorption charge of 55.5V. It offers a maximum continuous charge and discharge rate of 100A, ensuring it can handle high-demand situations effectively.
The dimensions of the Revov R100 are 495mm x 442mm x 170mm, and it has a weight of 42kg. It is designed to operate within a temperature range of 0 – 45°C during charging and -10 – 45°C during discharging. The enclosure protection rating is IP20, providing protection against solid objects.
The battery is equipped with a CAN Bus access interface, making it compatible with various leading inverter brands. It has a design cycle life of 7000 cycles, demonstrating its durability and longevity.
In terms of warranty, the Revov R100 comes with a 10-year warranty, with varying cycle coverage based on the depth of discharge (DoD). The warranty includes:
- 10 years / 3500 cycles @100% DoD
- 10 years / 5000 cycles @90% DoD
- 10 years / 6000 cycles @80% DoD
For optimal storage conditions, it is recommended to store the battery between 15 – 25°C at 50% state of charge (SoC) and perform a charge every 6 months to maintain its performance.
Technical Specs:
- Battery Type: LiFePO4
- Battery Capacity: 100Ah
- Power Capacity: 5.1kWh
- Voltage:
- Nominal: 51.2V
- Float Charge: 54.5V
- Absorption Charge: 55.5V
- Current:
- Maximum Continuous Charge/Discharge: 100/100A
- Weight & Dimensions:
- Dimensions [LxWxH, mm]: 495mm x 442mm x 170mm
- Battery Weight: 42kg
- Temperature:
- Charging: 0 – 45°C
- Discharging: -10 – 45°C
- Other:
- Enclosure Protection: IP20
- Design Cycle Life: 7000
- Access Interface: CAN Bus
- Compatible Inverters: All leading inverter brands
- Storage Conditions: 15 – 25°C at 50% SoC (charge every 6 months)
- Warranty: 10 years / 3500 cycles @100% DoD, 10 years / 5000 cycles @90% DoD, 10 years / 6000 cycles @80% DoD
- Max Depth of Discharge (DoD): 100%
The Revov R100 is a high-capacity lithium iron phosphate (LiFePO4) battery with a 100Ah capacity, providing a power capacity of 5.1kWh. It is designed for use with various leading inverter brands and comes with a 10-year warranty. This battery is designed to offer reliable and efficient energy storage solutions for various applications.
